Wood screws(or woodworking screws, wood construction screws ) are threaded fasteners designed for wood and soft materials. Woodworking screws have self-tapping and sharp tips and can be screwed directly into wood without pre-drilling. This type of connection is called a removable connection.
Wood screws have a variety of head types, surface treatments, and thread designs (coarse threads are suitable for softwoods, and fine threads are suitable for hardwoods). There are five types of wood screws that meet international standards, namely slotted round head wood screws, slotted countersunk head wood screws, cross slot round head wood screws, cross slot countersunk head wood screws, and hexagon head wood screws. The most commonly used is the cross slot wood screw.
Wood screws are commonly used in furniture manufacturing, construction carpentry, wood structure assembly, and applications such as cabinets and decks, making them the preferred fastener for securely connecting wood, plywood, and particleboard.
51Fasteners offers a full range of metric and imperial wood screws to meet diverse needs from fine woodworking to large-scale projects, with products exported to Southeast Asia, the Middle East, and European and American markets.
- International standards
- Strong grip
- Easy drive
- High-quality materials
- Complete sizes
- Quick delivery
- Customizable
Specifications
| Item | Details |
|---|---|
| Size | M6 to M12, #2 to #32 (or customized) |
| Length | 30 to 400mm |
| Head Shape | Flat Head, Round Head, Countersunk Head, Hex Head, Washer Head, Pan Head |

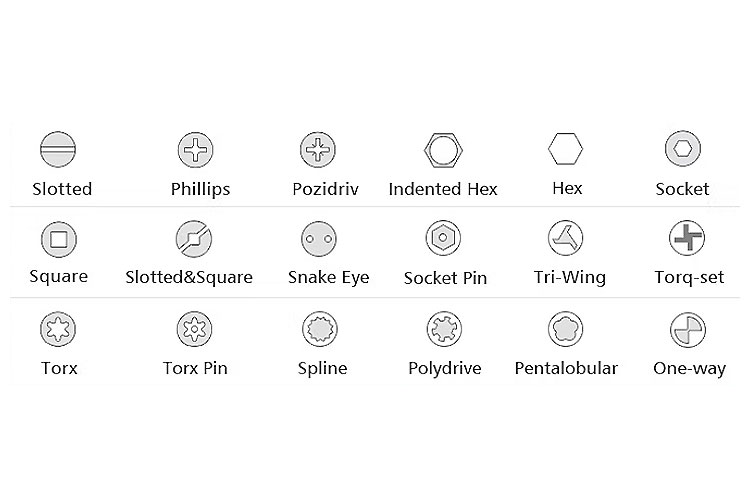

| Drive Type | Torx, Slotted, Square Slot, Hex Slot, Star Slot. |

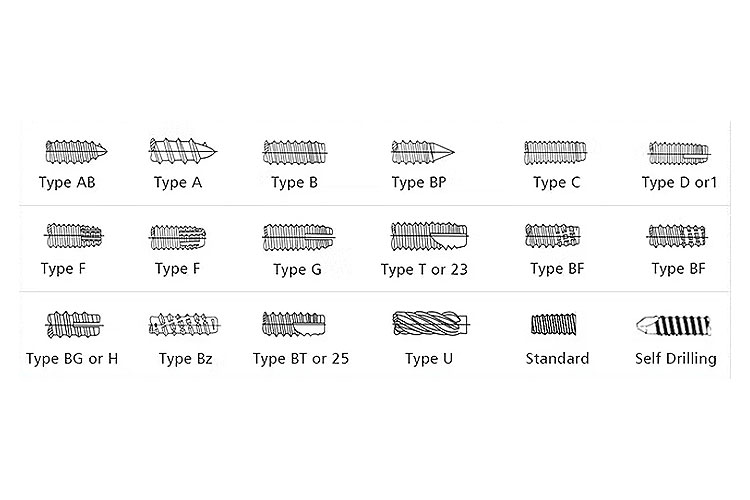

| Thread Type | UNC Thread, UNF Thread, ISO Thread, Metric Thread, Imperial Thread, Full Thread, Half Thread, Reverse Thread, Hi-Low Thread, Cutting Thread, etc. |
| Feature | With drill tip, with milling ribs, with shaft ribs. |
| Strength Grade | Grade 4.8, 6.8, 8.8, 10.9, 12.9; A2-50, A2-70, A2-80, A4-70, A4-80. |
| Standard | GB, DIN, ISO, ANSI/ASTM, BS, BSW, JIS, etc. |
| Material | Carbon Steel, Stainless Steel, Brass, Zinc-plated Steel, etc. |
| Surface | Zinc Plated (White/Yellow), Nickel Plated, Dacromet, Black, Phosphated, Plain Polished, Chrome-plated, Climaseal, Magni, Ruspert, etc. |
| Testing | Salt Spray Test. |
| Delivery Time | 10-30 Days. |
| Package | Bulk packaging, small box packaging, plastic bag packaging, plastic box packaging, carton + pallet or custom packaging services. |
| Trade Terms | FOB, CIF. |
Standard
| DIN 7995 | DIN 7996 | JIS B 1112 | ASME B 18.2.1 | NF E 25-607 | ASME/ANSI B 18.6.1 |
| DIN 7997 | NF E 25-601 | NF E 25-602 | BS 1210 | NF E 25-606 | DIN 571 |
| DIN 96 | DIN 97 | JIS B 1135 | UNI 704 | NF E 25-601 | DIN 95 |
What Types of Wood Screws Are There?
Wood Screws by Head Types
Metric Steel Hex Washer Head Screws for Wood

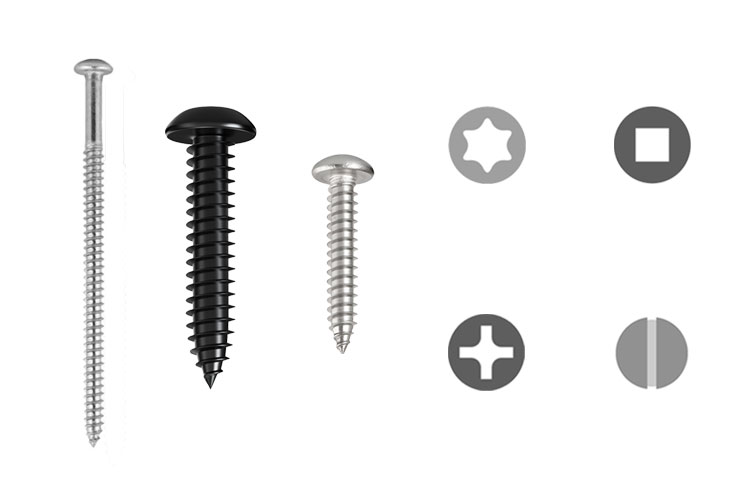

Decorative Pan Head Wood Screws for Furniture
Flanged Rounded Head Screws for Wood

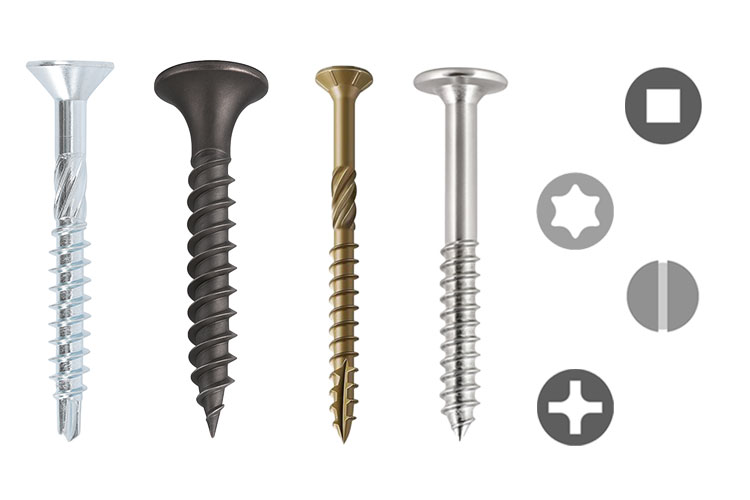

Flat CSK Head Screws for Wood

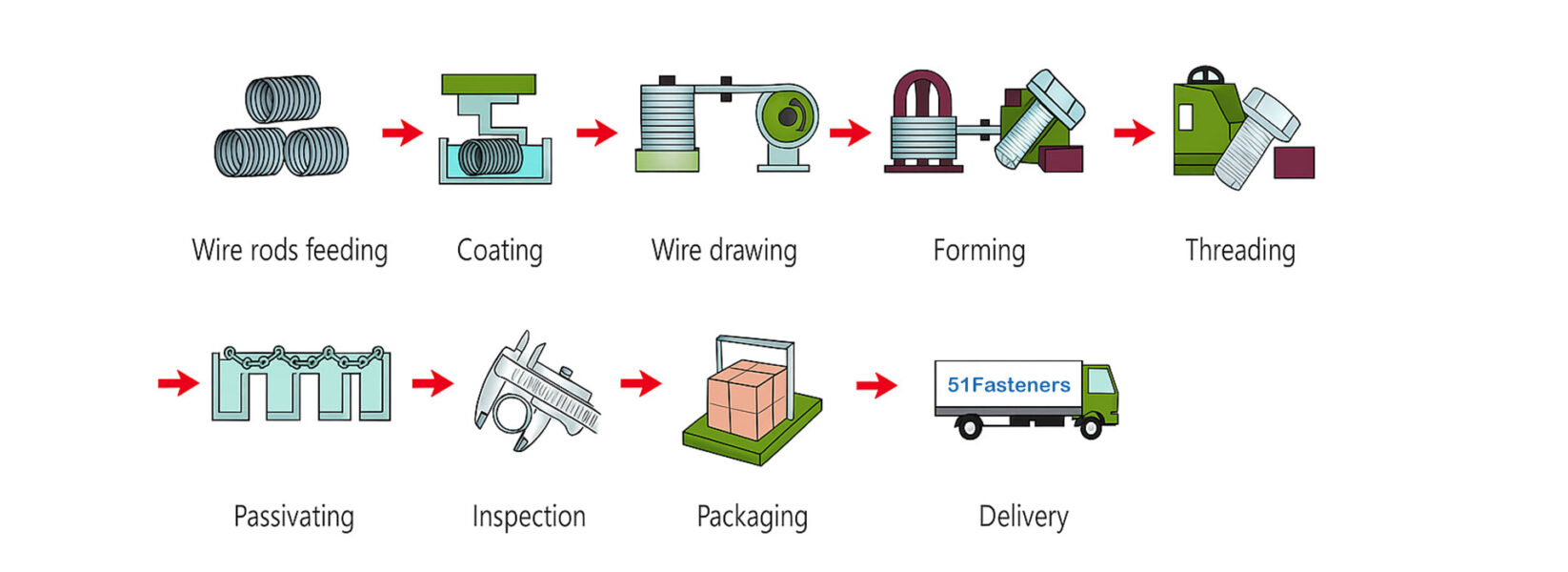

Wood Screw Production Process
We Support Customized All Types of Wood Screws

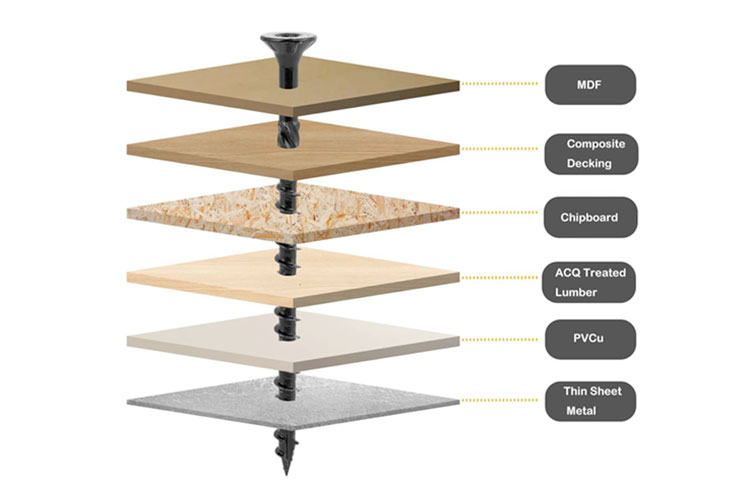

Application Scenarios
These screws are carefully designed for easy installation and can securely fasten various types of wood.
- Furniture manufacturing (connecting wooden boards, installing hardware)
- Wooden structure construction (roof, floor, wallboard fixing)
- Packaging box assembly
- Decorative wood product installation
- Gypsum board
- Thin iron plate
- Composite calcium silicate board
