Threaded rods, also known as threaded bars or ATR (All Thread Rods), are cylindrical straight rods with continuous external threads along their entire length. Threaded rods in bar form are also referred to by other names, including fully threaded studding, screw rod, redi-rod, TFL, and continuous threaded rod.
Threaded rods can be cut to length, chamfered at both ends, and shortened threaded rods are also referred to as studs. Common sizes for full-threaded rods include 3 feet, 6 feet, 10 feet, and 12 feet.
Threaded rods are easy and efficient to install, typically used in conjunction with nuts and washers, and are suitable for connecting, reinforcing, and supporting industrial structures in space-constrained environments.
Specifications
| Diameter Range | M2 – M100 |
| Length Range | 20mm – 3000mm (or Custom) |
| Thread Types | High-helix threads, Trapezoidal threads, Right-hand/Left-hand/Reverse threads |
| Thread Standards | Metric (Coarse/Fine), UNC, UNF, BSW, etc. |
| Tolerance Grade | 4g/6g (External), 6H/6G (Internal) |
| Materials | Low carbon steel, galvanized steel, stainless steel, alloy steel, special alloys, copper, titanium alloys, nylon, aluminum alloys |
| Standards | ISO, DIN, GB, UNI, BS. |
| Strength Grade | 4.8 Grade (Tensile: 400N/mm², Yield: 240N/mm²), 8.8 Grade (800N/mm², 640N/mm²) Yellow, 10.9 Grade (1000N/mm², 900N/mm²) White, A2 (304) Green, A4 (316) Red, ASTM F1554, A193 B7, A307A. |
| Packaging | Plastic box, carton, pallet, wooden case or customized packaging. |

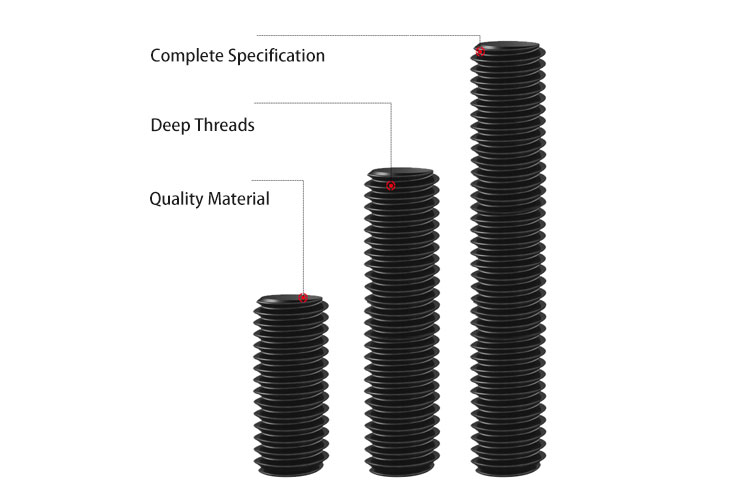

Benefits
- High quality material.
- Complete specification.
- Deep threads.
- Strong fastening force.
- Tough and durable.
- International standard.
- Lean manufacturing.
Selecting Thread Rods for Your Project

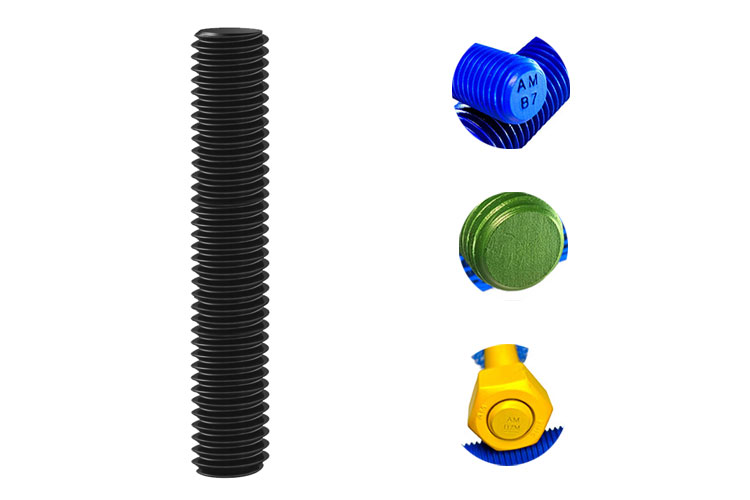

A193 B7 Thread Rod

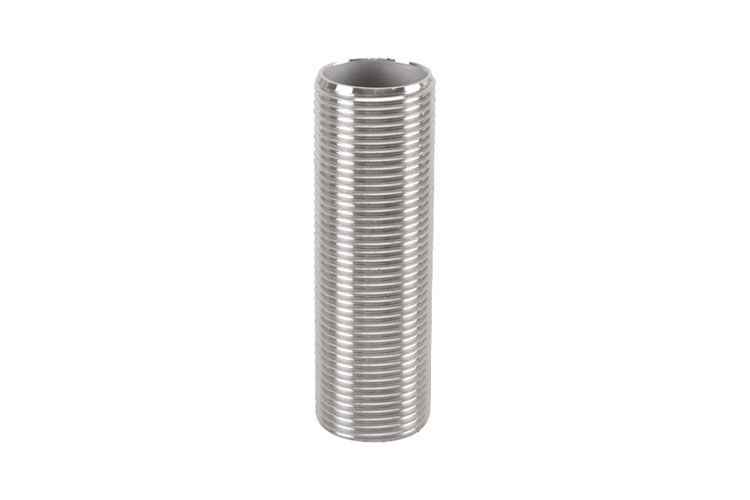

Hollow Thread Rod

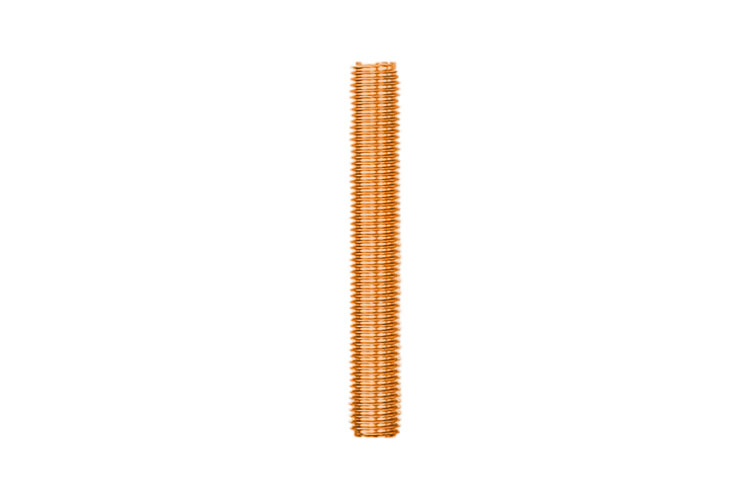

Brass Thread Rod

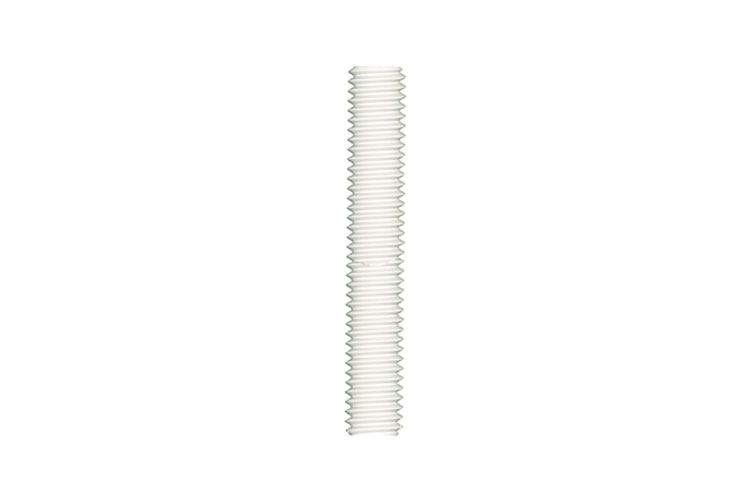

Nylon Thread Rod
Surface Coating
| Hot-dip Galvanizing | Black Oxide | Nickel Plating | Phosphating | Polishing | Dacromet |
| Black Zinc Plating | White Zinc Plating | Stainless Steel Passivation | Mechanical Galvanizing | Color Zinc Plating | Chrome Plating |
| Powder Sherardizing | Olive Zinc | Copper Plating | Composite Plating | Electrophoresis | Baking Paint |
| Rustban Coating | Silver Plating | Cadmium Plating | Gold Plating | Zinc-Nickel Alloy | Electroless Nickel |
| Teflon (PTFE) | Atotech | QPQ | Cleaning | Nylok (Nyseal) | Magni Coating |
| Anodizing | Adhesive Coating | Zinc-Aluminum-Magnesium | Blue Zinc Plating | Yellow Zinc Plating | Zinc-Cobalt Alloy |
World Standard
| ASME B 18.31.2 | ASME B 18.31.1M | DIN 976 | NB/T 47027 | DIN 975 | UNI 6547 |
| ASME B 18.31.3 | GB/T 9125.1 | GB/T 9125.2 | BS 2693-2 | NF E 25-136 | CNS 4610 |
| YJT 2001 | YJT 2002 | HG/T 20634 | MS 16187B | DIN 976 | CNS 5193 |
Application Scenarios
- Construction: Bridges, steel structures, concrete fixing.
- Power and Energy: Cable trays, power tower installation.
- Machinery Manufacturing: Parts fixing, equipment reinforcement.
- Petrochemical and Mining: Heavy-duty structures.
- Shipbuilding and Marine: Corrosion-resistant component fixing.
- Pipelines: Flange connections, pipeline supports.
- Corrosion-resistant Industries: Chemical, food.
- Automotive: Assembly, maintenance.
- Offshore Engineering, Medical Equipment.
Customized Threaded Rod Processing
We offer threaded rods and fully threaded studs in a variety of sizes to assist with your project. View our custom fastener capabilities.
- Precision thread rolling/cutting
- Non-standard length cutting
- Special thread processing
- Heat treatment processing
- Customized special diameters
- Batch processing services
