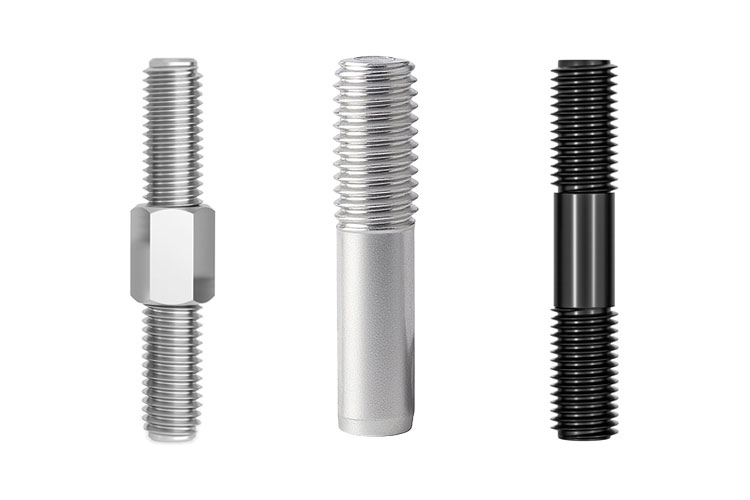

A stud bolt is a straight rod-type fastener without a head, with external threads on both ends or on one end, and typically a smooth, threadless shaft in the middle. Stud rod and double end stud are other names for stud bolts, which are suitable for applications requiring high-strength connections, adjustable lengths, or frequent disassembly.
51Fasteners is a one-stop supplier/manufacturer of fasteners. We specialize in supplying various materials and types of double-end studs and single-end studs to global users.
- High-quality raw materials
- Strict inspection
- Compliant with international standards
Specifications
| Parameter | Options |
|---|---|
| Thread Type | Metric: M3 to M52 Imperial: 1/4″ – 8″ |
| Thread Standard | UNC, UNF, BSW, ISO, ACME |
| Length (mm) | 50 – 1000 (customized) |
| Strength Grade | Metric: 3.6, 4.6, 6.8, 8.8, 10.9, 12.9 Stainless Steel: A2-70, A2-80, A4-70, A4-80 |
Materials
51fasteners offers fasteners made from a variety of materials.
| Material Category | Grades / Alloys |
|---|---|
| Carbon Steel | C1006, C1008, C1010, C1018A, C1022, C1035K, C1045K, etc. |
| Stainless Steel | SS201, SS202, SS301, SS302, SS303, SS304, SS316, SS316L, SS347, SS410, SS416, SS420, SS430, SS435, SS904, etc. |
| Duplex Stainless Steel | S32750, S32760, S2205, S2507 |
| Steel | C15, C35, C45 (K1045), S45C, C46 (K1046), C20, etc. |
| Copper & Alloys | Brass: C3602, C3604, H59, H62, H65, H68, H70, H90, etc. Bronze: Phosphor Bronze, Silicon Bronze Others: Red Copper, Beryllium Copper, Pure Copper |
| Iron | 12L13, 12L14, 12L15, etc. |
| Aluminum & Alloys | AL6061, AL6063, 7075, etc. |
| Titanium & Alloys | TAD, TA1-TA8, TB2, TC1-TC10, etc. |
| Alloy Steel | SCM435, 10B21, 40Cr, Inconel 600, Inconel 625, Inconel 718, Monel 400, K500, etc. |
| Silver & Alloys | AgCu3, AgCu7.5, AgSn3-5, AgPb0.4-0.7, AgPd3-5, AgNi10, etc. |
Surface Finishing
We support a variety of surface coating processes.
Electrogalvanizing (white zinc, yellow zinc, black zinc, colored zinc), hot dip galvanizing, Dacromet, nickel plating, chrome plating, natural polishing, oxidation blackening, teflon.
World Standard
| DIN 6379 | DIN 949 | JIS B1173 | Q 123 | BS 2693-1 | JB/ZQ 4756 |
| DIN 2510 | DIN 2509 | JIS B1220 | Q 124 | BS 4439 | JB/ZQ 4324 |
| DIN 835 | DIN 797 | JIS A5542 | Q 129 | ASME/ANSI B18.31.2 | JB/T 4707 |
| DIN 938 | IFI 528 | JIS B5540 | QC/T 870 | ASME/ANSI B18.31.1M-3 | JB/T 2773 |
| DIN 939 | IFI 136 | UNI 5911 | QC/T 871 | GOST 28919 | JB/T 1308.14 |
| DIN 940 | NF E25-135 | UNI 5914 | Q 120 | GOST 22032 | JB/T 1308.15 |
| TB/T 564 | QJ 2389 | UNI 5909 | Q 121 | Q 129B | JB/T 8007.4 |
High Quality Stud Bolts Types

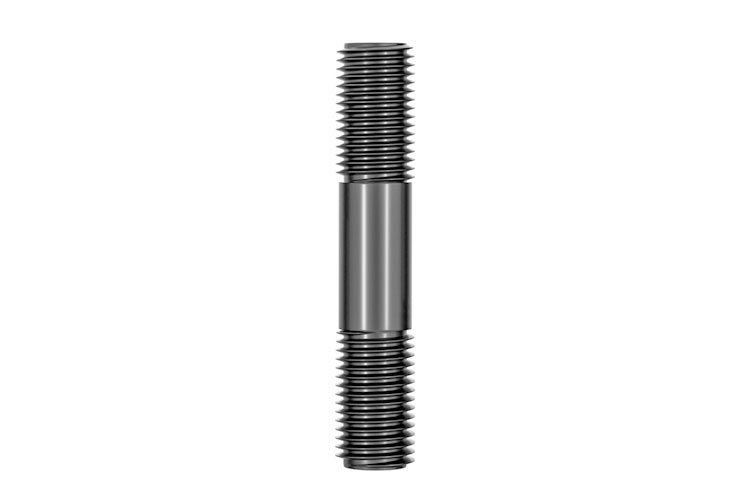

B7 Stud Bolt

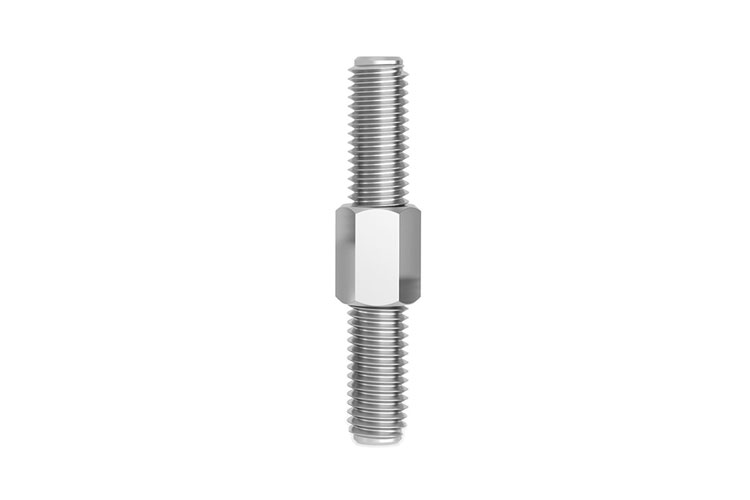

Hex Stud Bolt

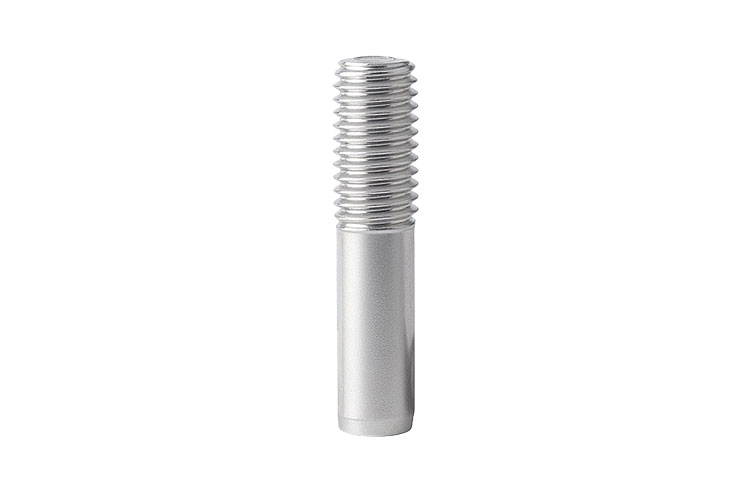

Single End Stud

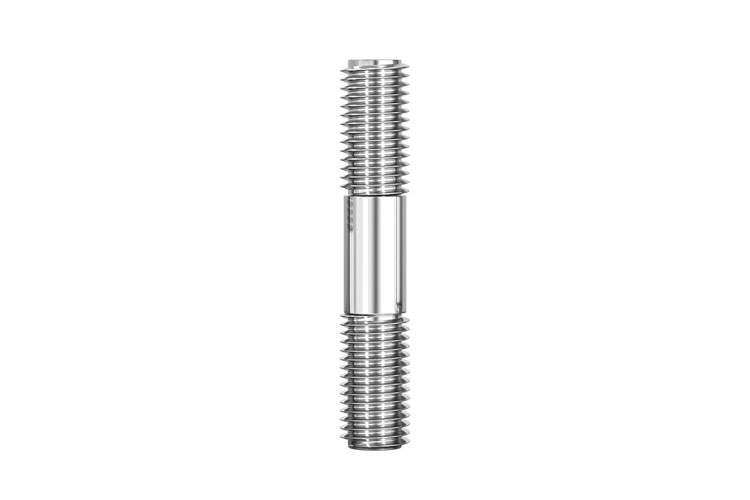

SS Double End Threaded Stud

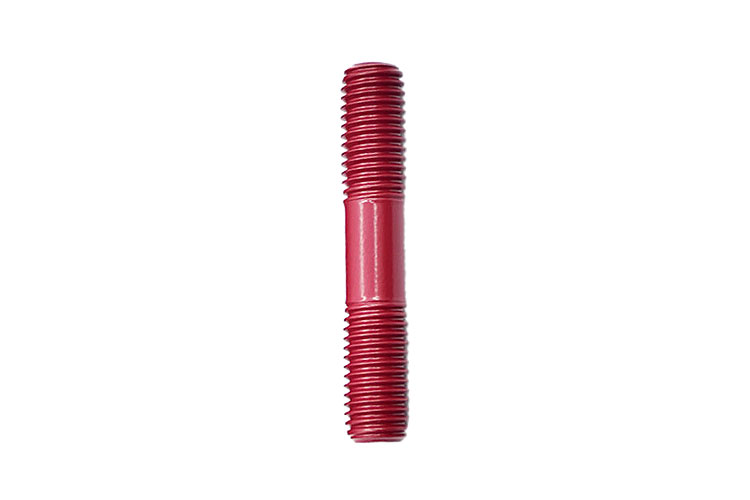

Teflon Coated Stud Bolt

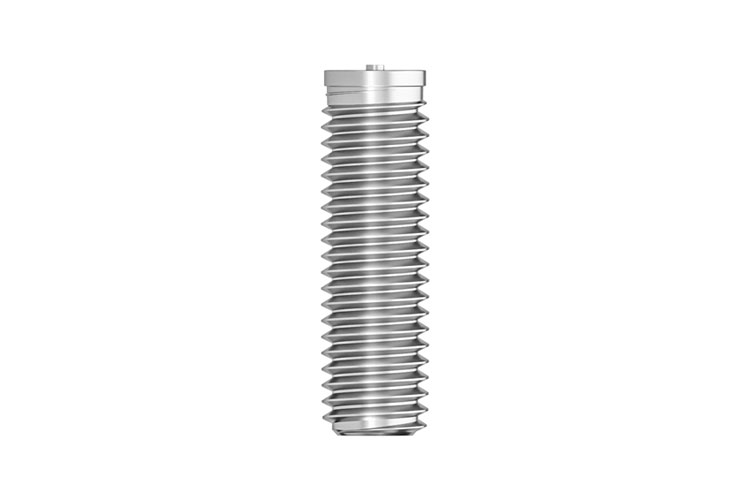

Weld Stud Bolt
Processing Services
- Non-standard customization: special lengths, thread specifications, material requirements
- Coating customization: coating and passivation treatments according to customer requirements (environmentally friendly, corrosion resistant, aesthetic)
- Threads: rolling, cutting
- Laser/stamping marking: product number, brand logo marking
- Inspection reports: mechanical properties, salt spray test, and other certifications
