ISO 8734 is an international standard for dowel pins, known as parallel cylindrical pins, with chamfered ends and high-precision diameter tolerances. The material is austenitic stainless steel or hardened steel, and the surface treatment is blackening, galvanizing, phosphating, etc. Suitable for positioning and connection of mechanical parts, shafts and holes, parts assembly datum, pins, stops and other light-load connections.
Features
- High quality
- Easy to disassemble
- High positioning accuracy
- High reliability
- Time saving
51fasteners is a one-stop industrial fasteners supplier, specializing in wholesale dowel pins in a variety of sizes, thicknesses, materials and finishes, including inch and metric. If you need to purchase ISO 8734 dowel pins, please contact us for a quote today. We are always here to assist you!

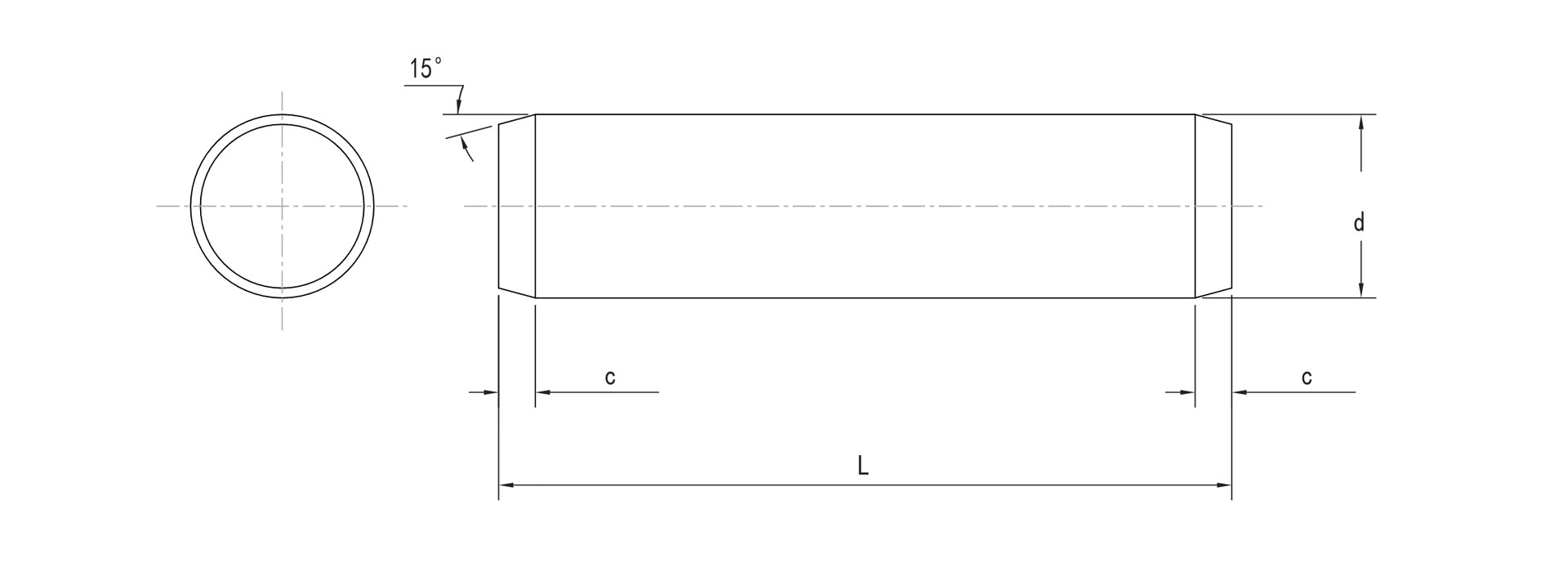

ISO 8734 Specifications
Equivalent standards: DIN 6325; CSN 022152; UNI 6364A.
| Nominal diameter (mm) | d max | d min | c |
|---|---|---|---|
| Φ1 | 1.008 | 1.002 | 0.20 |
| Φ1.5 | 1.508 | 1.502 | 0.30 |
| Φ2 | 2.008 | 2.002 | 0.35 |
| Φ2.5 | 2.508 | 2.502 | 0.40 |
| Φ3 | 3.008 | 3.002 | 0.50 |
| Φ4 | 4.012 | 4.004 | 0.63 |
| Φ5 | 5.012 | 5.004 | 0.80 |
| Φ6 | 6.012 | 6.004 | 1.20 |
| Φ8 | 8.015 | 8.006 | 1.60 |
| Φ10 | 10.015 | 10.006 | 2.00 |
| Φ12 | 12.018 | 12.007 | 2.50 |
| Φ16 | 16.018 | 16.007 | 3.00 |
| Φ20 | 20.021 | 20.008 | 3.50 |
