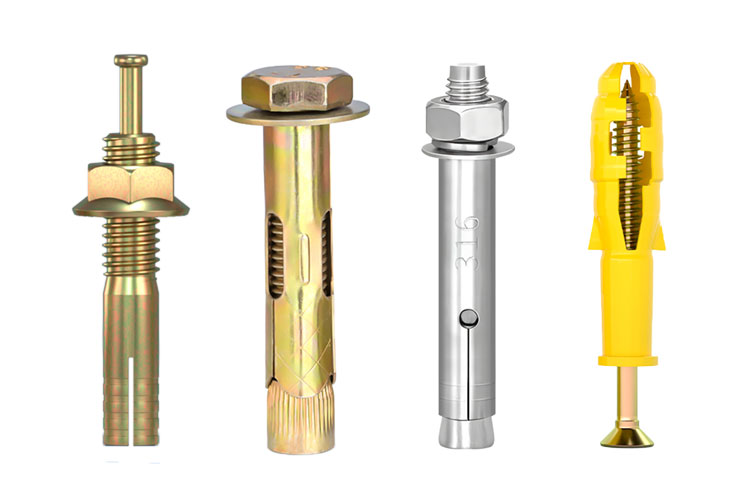

What Are Expansion Anchor Bolts?
Expansion anchor bolts are available in metal and plastic materials. They consist of components such as bolts, washers, and expansion sleeves. One end of the bolt has threads, while the other end has a conical shape. The sleeve has several slits. The fastening of an expansion bolt is achieved by tightening the nut, which mechanically expands the sleeve, pressing it against the hole wall to form a self-locking mechanism, and ultimately anchoring the bolt in concrete, brick walls, or other solid, hard substrates.
Expansion Anchor Bolt Manufacturer
51Fasteners is a one-stop industrial fastener supplier. We offer a full range of expansion anchors and support non-standard customization.
- Quality Materials
- Competitive Prices
- Complete Size
- Standard-compliant
- Fast Shipping
Specifications
| Size | M5 to M30（or custom) |
| Length | 80 to 260mm (or custom) |
| Strength | Grade 4.6, 4.8, 5.6, 6.8, 8.8, 10.9, 12.9; A2-50, A2-70, A2-80, A4-50, A4-70, A4-80 |
| Material | Stainless steel, aluminum alloy, carbon steel, copper, etc. |
| Surface Finishing | Color zinc, hot-dip galvanizing, nickel plating, chrome plating, natural polishing, passivation, copper plating, oxidation blackening, powder coating, etc. |
| Packaging | Plastic bag, small box, carton, wooden case, pallet or customized packaging. |
Types of Expansion Anchor Bolts

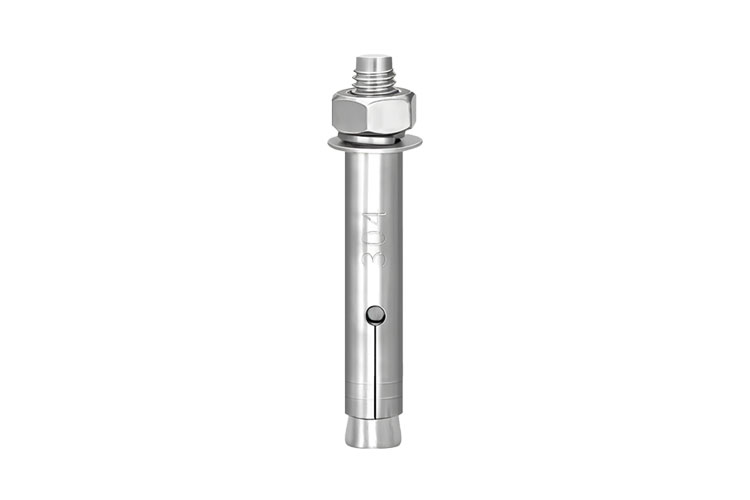

Sleeve Anchor Bolt
High-performance sleeve anchor bolts consist of bolts, expansion sleeves, and nuts. During installation, tighten the nut to expand the sleeve, which provides excellent tensile performance. Suitable for concrete or masonry substrates.

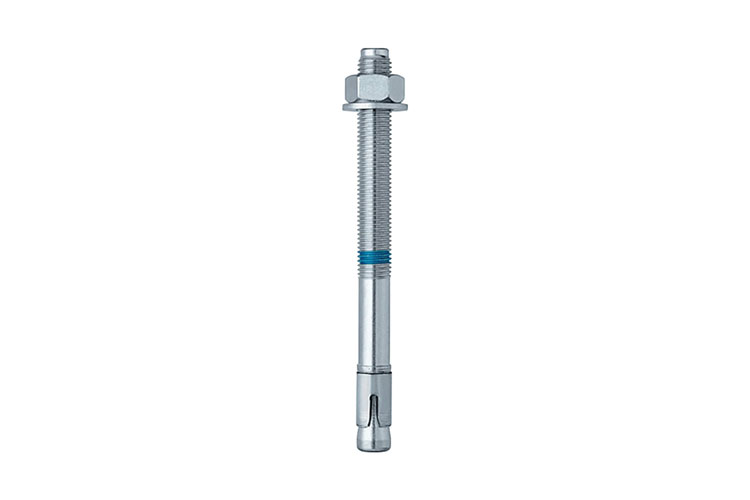

Wedge Anchor Bolt
Concrete wedge anchors consist of bolts with wedge heads and metal sleeves. After being hammered into the drilled hole, the bolts are tightened to expand the wedge blocks and secure the sleeve in place.

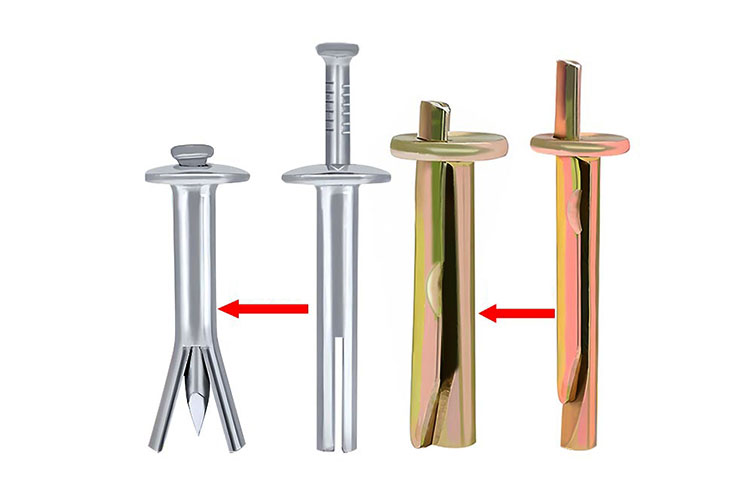

Hit Anchor Bolt
Hit Anchor Bolt, or drive-in anchor bolt, insert the anchor bolt into the pre-drilled hole in concrete or brick, use a hammer to drive the nail into the metal impact anchor, and use the tail of the anchor bolt to expand and fix it.

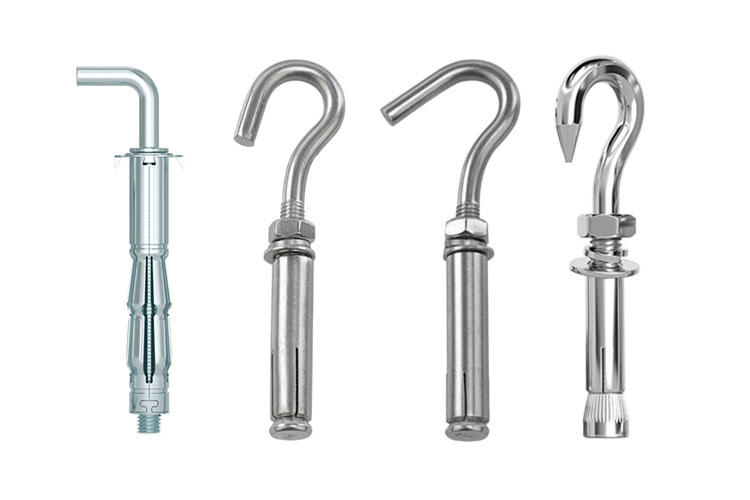

Expansion Screw Hook
Hook Anchor Bolt has a hook-shaped structure at the top and an expansion principle similar to that of a sleeve-type anchor bolt. It is suitable for ceilings or situations where items need to be suspended, such as hanging pipes, lighting fixtures, etc.

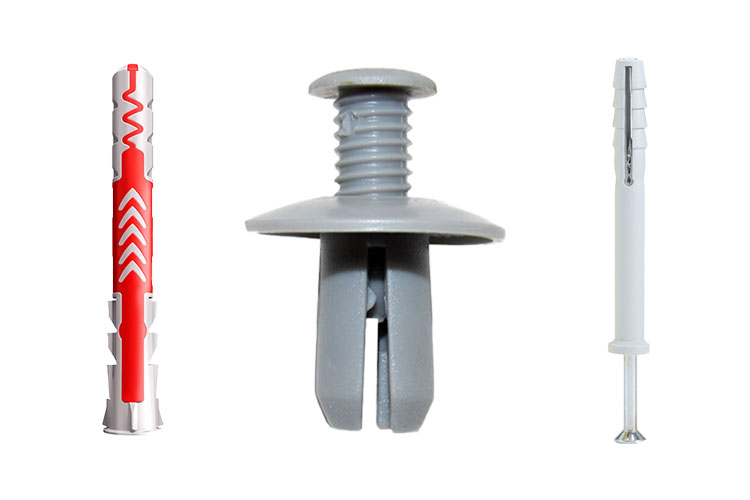

Plastic Anchor Bolt
Plastic anchor bolts consist of plastic expansion tubes and screw kits, and are mainly used for lightweight substrates (such as gypsum board, walls, etc.). They are not suitable for high-load applications.

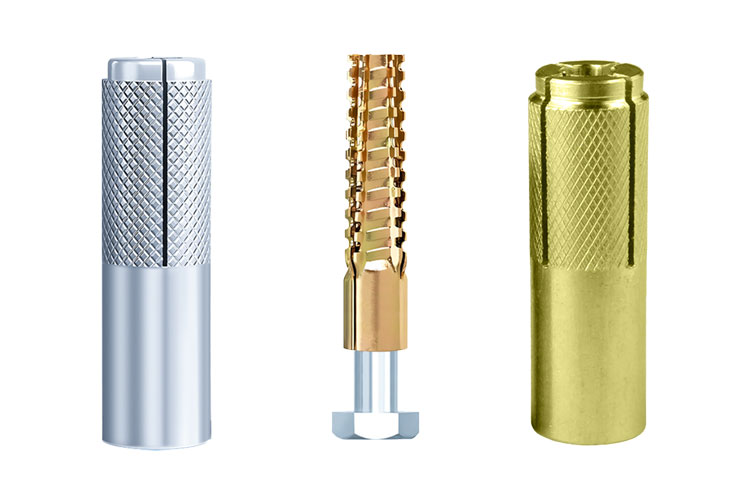

Drop in Anchor
Drop-in anchor bolts are internal threaded anchor bolts designed for anchoring in solid concrete, compatible with screws of any head type. They can be easily installed and removed. Suitable for overhead anchoring, suspended supports, air conditioning, ventilation, sprinkler systems, and more.

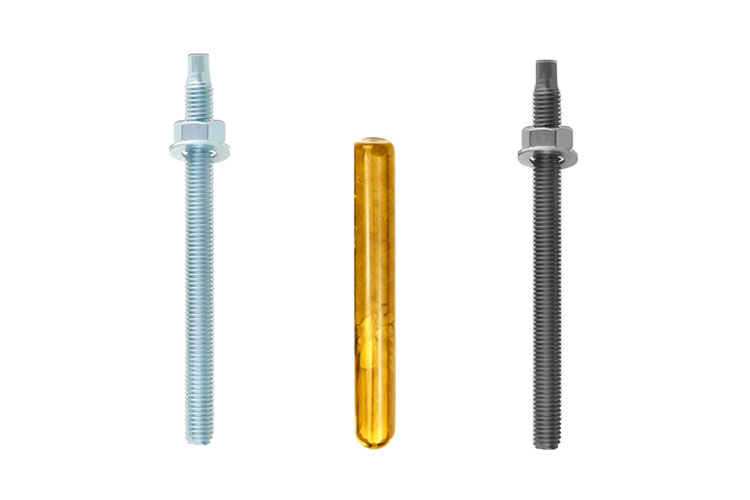

Chemical Anchor Bolt
Chemical anchors bond to concrete using chemical adhesives (such as resin) and have 100% adhesion. When the adhesive is injected into the hole, the chemical substance fully fills the irregularities inside the hole, forming an airtight, waterproof structure that causes minimal damage to the base material.

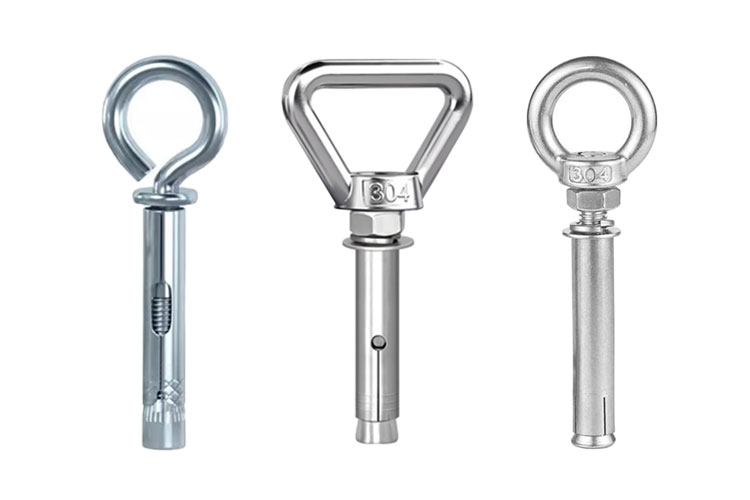

Eye Expansion Bolt
Eye expansion anchor bolts are mechanical expansion fasteners with eyebolts. They are suitable for load-bearing and hoisting applications in construction, industrial, and home improvement fields. They feature quick installation, high load-bearing capacity, and corrosion resistance.
Application Scenarios
- Construction: Steel structures, stair railings, curtain walls, bridges, power towers, exhibition stands
- Transportation: Guardrails, railings
- Equipment: Air conditioner outdoor units, pipe brackets, water heaters, mechanical bases
- Home: TVs, storage racks, lighting fixtures, cabinets, bathroom fixtures
Our Service Advantages
51Fasteners is a professional supplier of expansion bolts with a complete supply chain system that enables fast delivery.
- Customized sizes and non-standard specifications
- Various surface treatment options
- Small batch samples and large-scale production
- Marking and branding
- Special packaging solutions
- Heat treatment and strength enhancement services
