DIN 985 Nylon Insert Lock Nuts

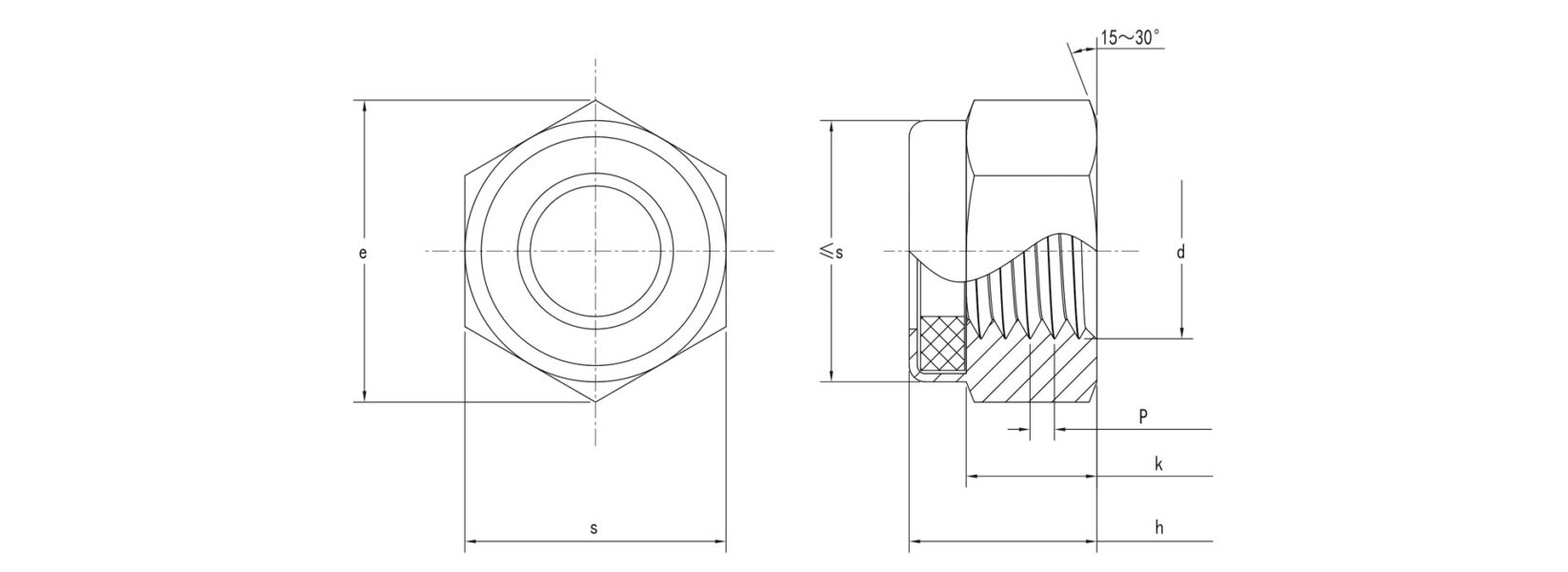

DIN 985 Lock Nuts Dimensions

Equivalent standards: ISO 10511; CSN 021492; UNI 7474;

(mm)	P	e min	h max	h min	k min	s max	s min
M3	0.5	6.01	4	3.7	2.4	5.5	5.32
M4	0.7	7.66	5	4.7	2.9	7	6.78
M5	0.8	8.79	5	4.7	3.2	8	7.78
M6	1	11.05	6	5.7	4	10	9.78
M7	1	12.12	7.5	7.14	4.7	11	10.73
M8	1 | 1.25	14.38	8	7.64	5.5	13	12.73
M10	1 | 1.25 | 1.5	18.9	10	9.64	6.5	17	16.73
M12	1.25 | 1.5 | 1.75	21.1	12	11.57	8	19	18.67
M14	1.5 | 2	24.49	14	13.3	9.5	22	21.67
M16	1.5 | 2	26.75	16	15.3	10.5	24	23.67
M18	1.5 | 2 | 2.5	29.56	18.5	17.66	13	27	26.16
M20	1.5 | 2 | 2.5	32.95	20	18.7	14	30	29.16
M22	1.5 | 2 | 2.5	35.03	22	20.7	15	32	31
M24	2 | 3	39.55	24	22.7	15	36	35
M27	2 | 3	45.2	27	25.7	17	41	40
M30	2 | 3.5	50.85	30	28.7	19	46	45
M33	2 | 3.5	55.37	33	31.4	22	50	49
M36	3 | 4	60.79	36	34.4	25	55	53.8
M39	3 | 4	66.44	39	37.4	27	60	58.8
M42	3 | 4.5	72.09	42	40.4	29	65	63.8
M45	3 | 4.5	76.95	45	43.4	32	70	68.1
M48	3 | 5	82.6	48	46.4	36	75	73.1
