DIN 961 Hex Head Cap Screws Fully Threaded with Fine Thread

Metric DIN 961 hexagonal head fully threaded bolts with fine threads. They have a hexagonal head with a chamfered corner. The materials are carbon steel, alloy steel, stainless steel, etc. The surface treatment includes black oxidation, white zinc, colored zinc, hot dip galvanizing, Dacromet, etc. Click on the link to view related products: Hexagon Head Bolts.

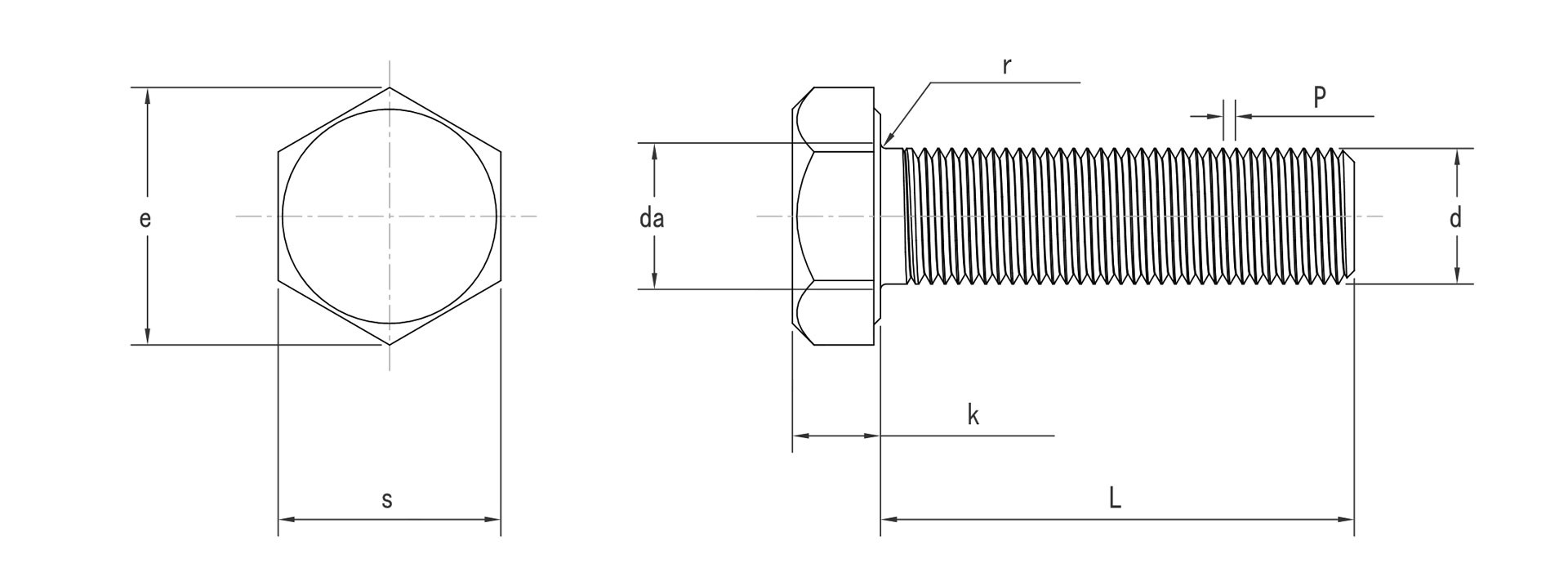

DIN 961 Dimensions

mm	P	da max	e min	k max	k min	r min	s max	s min
M8	1	9.2	14.38	5.45	5.15	0.4	13	12.73
M10	1|1.25	11.2	18.9	6.58	6.22	0.4	17	16.73
M12	1.25|1.5	13.7	21.1	7.68	7.32	0.6	19	18.67
M14	1.5	15.7	24.49	8.98	8.62	0.6	22	21.67
M16	1.5	17.7	26.75	10.18	9.82	0.6	24	23.67
M18	1.5|2	20.2	30.14	11.72	11.28	0.6	27	26.67
M20	1.5|2	22.4	33.59	12.72	12.28	0.8	30	29.67
M22	1.5|2	24.4	35.72	14.22	13.78	0.8	32	31.61
M24	1.5|2	26.4	39.98	15.22	14.78	0.8	36	35.38
M27	2	30.4	45.2	17.35	16.65	1	41	40
M30	2	33.4	50.85	19.12	18.28	1	46	45
M33	2	36.4	55.37	21.42	20.58	1	50	49
M36	3	39.4	60.79	22.92	22.08	1	55	53.8
M39	3	42.4	66.44	25.42	24.58	1	60	58.8
M42	3	45.6	71.3	26.42	25.58	1.2	65	63.1
M45	3	48.6	76.95	28.42	27.58	1.2	70	68.1
M48	3	52.6	82.6	30.42	29.58	1.6	75	73.1
M52	3	56.6	88.25	33.5	32.5	1.6	80	78.1
