DIN 915 Hexagon Socket Set Screws with Full Dog Point

DIN 915 Metric Hexagon Socket Set Screws with full dog point are a fully threaded fastener. One end has a hexagon socket drive hole and the other end is cylindrical. The cylindrical end can be recessed into a workpiece hole or guide slot for precise positioning.

51Fasteners offers a complete range of metric set screws and a variety of imperial and metric industrial fasteners in stock. DIN 915 hex socket set screws with cylindrical ends are available in diameters ranging from M3 to M16, lengths from 3 to 60 millimeters, and materials including carbon steel, stainless steel 304/316, and more.

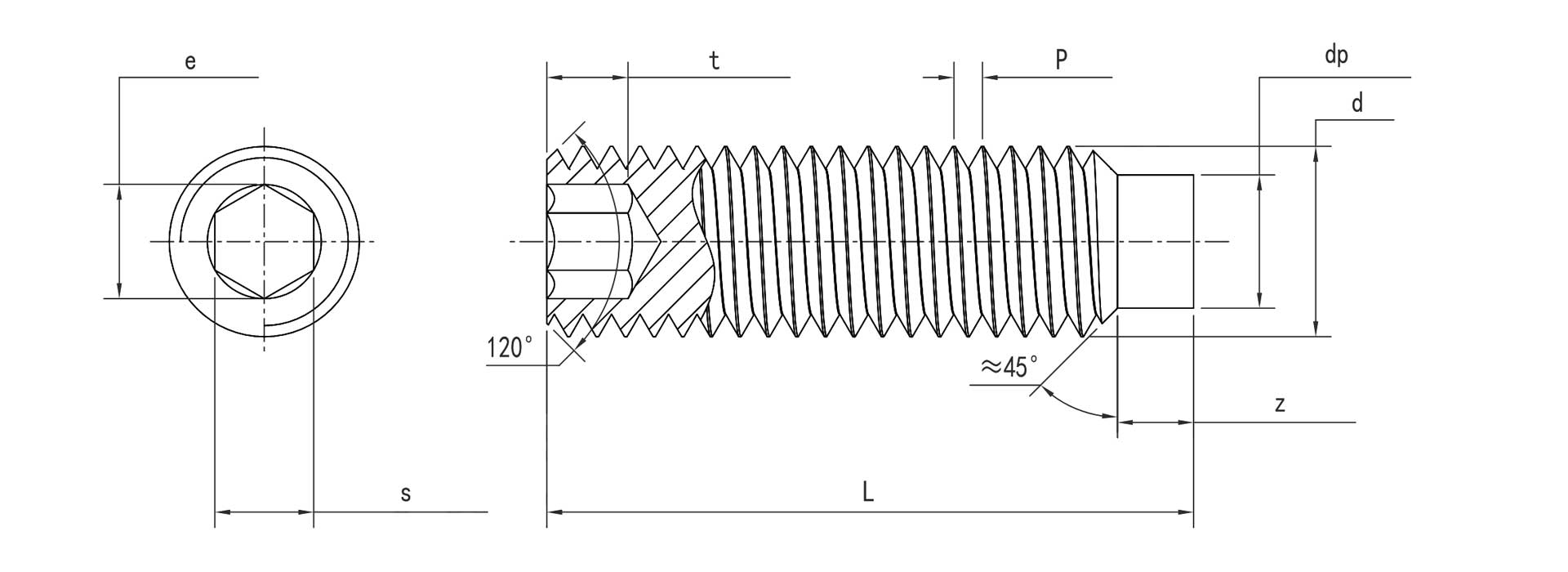

DIN 915 Specifications

Equivalent standards: ISO 4028; GB 79, CSN 021189; PN 82316; UNI 5925; EU 24028;

mm	P	dp max	dp min	e min	s min	s max	t min	z min	z max
M1.4	0.3	0.7	0.45	0.803	0.711	0.724	0.6	0.4	0.65
M1.6	0.35	0.8	0.55	0.803	0.711	0.724	0.7	0.4	0.65
M1.8	0.35	0.9	0.65	0.803	0.711	0.724	0.8	0.5	0.65
M2	0.4	1.0	0.75	1.003	0.889	0.902	0.8	0.5	0.75
M2.5	0.45	1.5	1.25	1.427	1.270	1.295	1.2	0.63	0.88
M3	0.5	2.0	1.75	1.730	1.520	1.545	1.2	0.75	1.0
M4	0.7	2.5	2.25	2.300	2.020	2.045	1.5	1.0	1.25
M5	0.8	3.5	3.2	2.870	2.520	2.560	2.0	1.25	1.5
M6	1.0	4.0	3.7	3.440	3.020	3.060	2.0	1.5	1.75
M8	1.25	5.5	5.2	4.580	4.020	4.095	3.0	2.0	2.25
M10	1.5	7.0	6.64	5.720	5.020	5.095	4.0	2.5	2.75
M12	1.75	8.5	8.14	6.860	6.020	6.095	4.8	3.0	3.25
M14	2.0	10.0	9.64	6.860	6.020	6.095	5.6	3.5	3.8
M16	2.0	12.0	11.57	9.150	8.025	8.115	6.4	4.0	4.3
M18	2.5	13.0	12.57	11.430	10.025	10.115	7.2	4.5	4.8
M20	2.5	15.0	14.57	11.430	10.025	10.115	8.0	5.0	5.3
M22	2.5	17.0	16.57	13.720	12.032	12.142	9.0	5.5	5.8
M24	3.0	18.0	17.57	13.720	12.032	12.142	10.0	6.0	6.3
