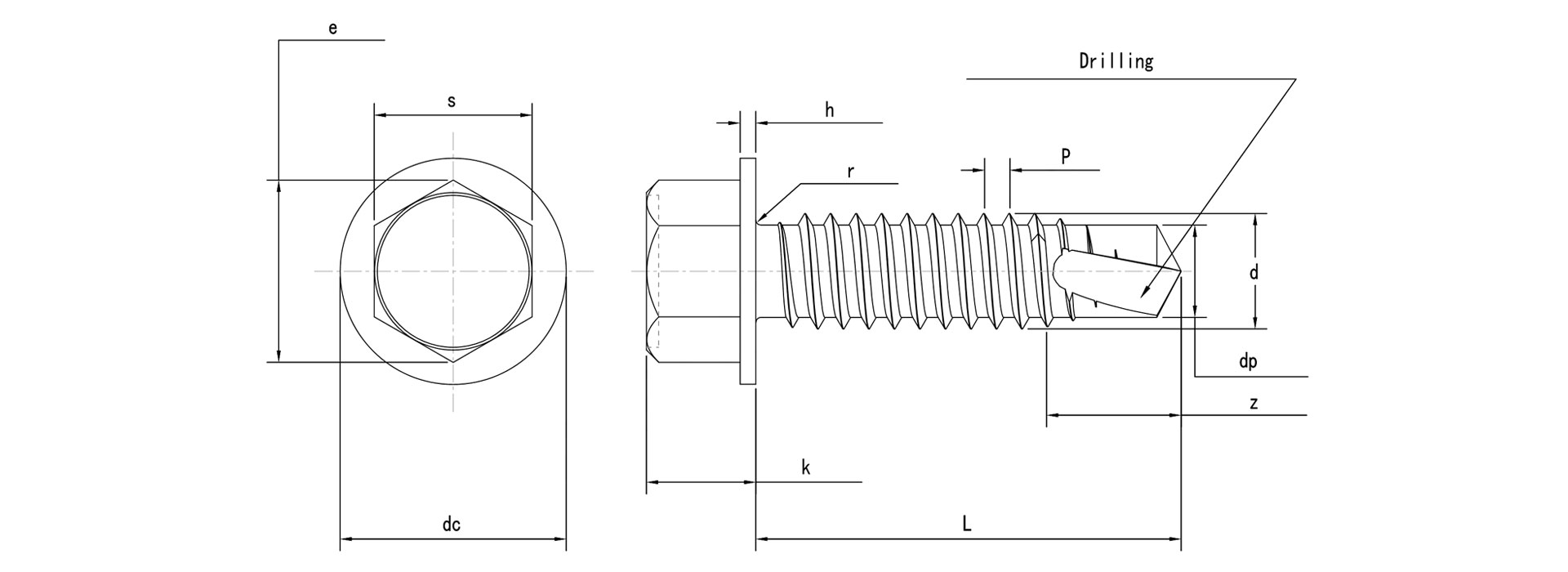

DIN 7504 K Specifications
- Current norm: ISO 15480
- Equivalent norms: UNI 8117 K
| Size (mm) | P | a max | h min | dc max | dc min | e min | k max | k min | r max | s max | s min | Drilling Plate Thickness min | Drilling Plate Thickness max | z max |
|---|
| ST2.9 | 1.1 | 1.1 | 0.4 | 6.3 | 5.8 | 4.28 | 2.8 | 2.5 | 0.4 | 4 | 3.82 | 0.7 | 1.9 | 6.25 |
| ST3.5 | 1.3 | 1.3 | 0.6 | 8.3 | 7.6 | 5.96 | 3.4 | 3 | 0.5 | 5.5 | 5.32 | 0.7 | 2.25 | 6.65 |
| ST3.9 | 1.3 | 1.3 | 0.6 | 8.3 | 7.6 | 5.96 | 3.4 | 3 | 0.5 | 5.5 | 5.32 | 0.7 | 2.4 | 7.2 |
| ST4.2 | 1.4 | 1.4 | 0.8 | 8.8 | 8.1 | 7.59 | 4.1 | 3.6 | 0.6 | 7 | 6.78 | 1.75 | 3 | 8.7 |
| ST4.8 | 1.6 | 1.6 | 0.9 | 10.5 | 9.8 | 8.71 | 4.3 | 3.8 | 0.7 | 8 | 7.78 | 1.75 | 4.4 | 9.3 |
| ST5.5 | 1.8 | 1.8 | 1 | 11 | 10 | 8.71 | 5.4 | 4.8 | 0.8 | 8 | 7.78 | 1.75 | 5.25 | 11 |
| ST6.3 | 1.8 | 1.8 | 1 | 13.5 | 12.2 | 10.95 | 5.9 | 5.3 | 0.9 | 10 | 9.78 | 2 | 6 | 12 |
