DIN 7 Cylindrical Parallel Dowel Pins

DIN 7 cylindrical parallel dowel pins are generally made of hardened steel and are a solid cylindrical bar. It has a smooth appearance, high surface hardness, is wear-resistant and can withstand shear forces without deformation. It is used for precise connections between two or more parts.

51Fasteners offers fastener products in both inch and metric standards, including various materials and surface treatments. If you are looking for a reliable dowel pins supplier, please submit the contact form on our website. Click the link to view related products: Metric/Inch Parallel Dowel Pins.

DIN 7 Dimensions

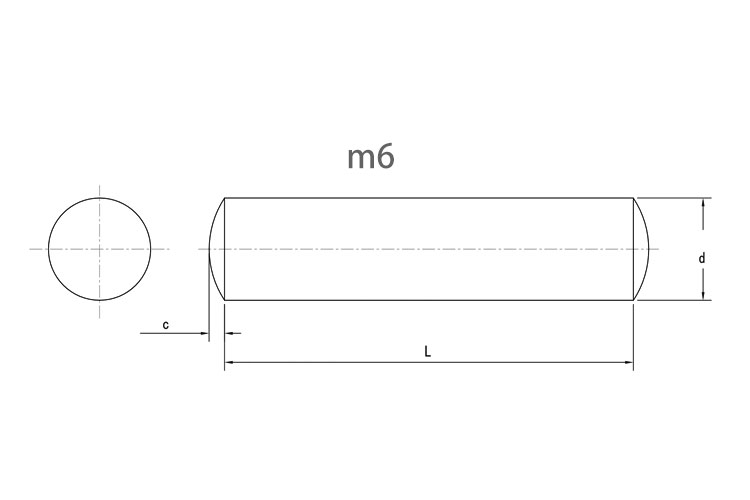

m6 (mm)	d max	d min	c
Φ0.8	0.808	0.802	0.12
Φ1	1.008	1.002	0.15
Φ1.2	1.208	1.202	0.18
Φ1.5	1.508	1.502	0.23
Φ2	2.008	2.002	0.30
Φ2.5	2.508	2.502	0.40
Φ3	3.008	3.002	0.45
Φ4	4.012	4.004	0.60
Φ5	5.012	5.004	0.75
Φ6	6.012	6.004	0.90
Φ8	8.015	8.006	1.20
Φ10	10.015	10.006	1.50
Φ12	12.018	12.007	1.80
Φ14	14.018	14.007	2.00
Φ16	16.018	16.007	2.50
Φ20	20.021	20.008	3.00
Φ25	25.021	25.008	4.00
Φ30	30.021	30.008	4.50
Φ40	40.025	40.009	6.00
Φ50	50.025	50.009	7.50

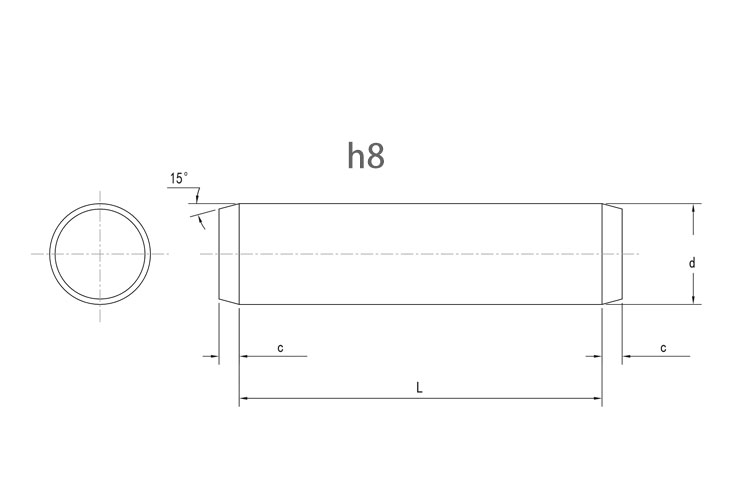

h8 (mm)	d max	d min	c
Φ0.8	0.800	0.786	0.12
Φ1	1.000	0.986	0.15
Φ1.2	1.200	1.186	0.18
Φ1.5	1.500	1.486	0.23
Φ2	2.000	1.986	0.30
Φ2.5	2.500	2.486	0.40
Φ3	3.000	2.986	0.45
Φ4	4.000	3.982	0.60
Φ5	5.000	4.982	0.75
Φ6	6.000	5.982	0.90
Φ8	8.000	7.978	1.20
Φ10	10.000	9.978	1.50
Φ12	12.000	11.973	1.80
Φ14	14.000	13.973	2.00
Φ16	16.000	15.973	2.50
Φ20	20.000	19.967	3.00
Φ25	25.000	24.967	4.00
Φ30	30.000	29.967	4.50
Φ40	40.000	39.961	6.00
Φ50	50.000	49.961	7.50

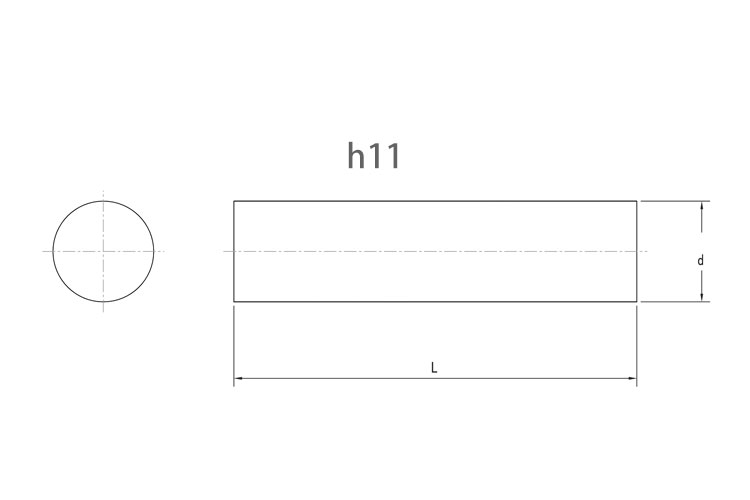

h11 (mm)	d max	d min
Φ0.8	0.80	0.74
Φ1	1.00	0.94
Φ1.2	1.20	1.14
Φ1.5	1.50	1.44
Φ2	2.00	1.94
Φ2.5	2.50	2.44
Φ3	3.00	2.94
Φ4	4.00	3.93
Φ5	5.00	4.93
Φ6	6.00	5.93
Φ8	8.00	7.91
Φ10	10.00	9.91
Φ12	12.00	11.89
Φ14	14.00	13.89
Φ16	16.00	15.89
Φ20	20.00	19.87
Φ25	25.00	24.87
Φ30	30.00	29.87
Φ40	40.00	39.84
Φ50	50.00	49.84
