DIN 3570 pipe clamp U-bolts are threaded at both ends and can be used with nuts and washers to secure round or semi-circular components. Its curved section can fit tightly around pipes, rods or other cylindrical objects.
51Fasteners supplies high-quality U-bolts with fast delivery. Sizes range from Φ30 to Φ530.

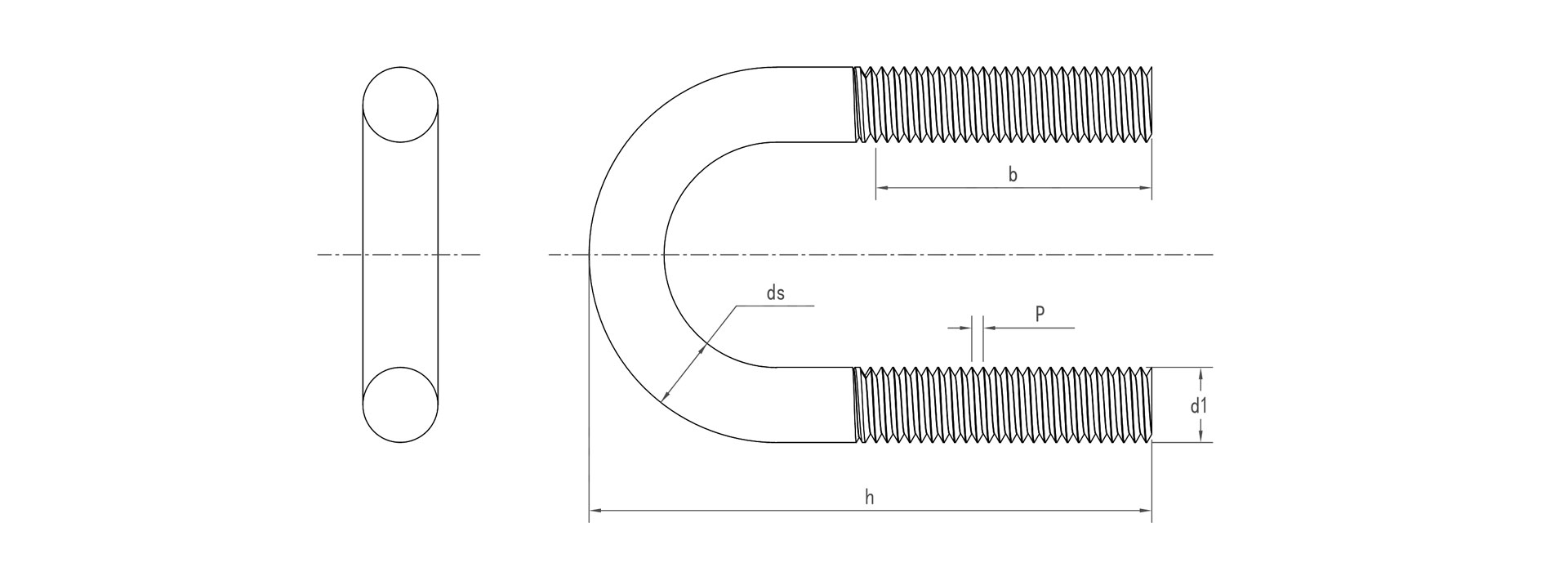

DIN 3570 U Bolts Dimensions
| (mm) | ds | d1 | h | P |
|---|---|---|---|---|
| Φ30 | 10 | M10 | 70 | 1.5 |
| Φ38 | 10 | M10 | 76 | 1.5 |
| Φ46 | 10 | M10 | 86 | 1.5 |
| Φ52 | 10 | M10 | 92 | 1.5 |
| Φ64 | 12 | M12 | 109 | 1.75 |
| Φ82 | 12 | M12 | 125 | 1.75 |
| Φ94 | 12 | M12 | 138 | 1.75 |
| Φ120 | 16 | M16 | 171 | 2 |
| Φ148 | 16 | M16 | 191 | 2 |
| Φ176 | 16 | M16 | 217 | 2 |
| Φ202 | 16 | M16 | 249 | 2 |
| Φ228 | 20 | M20 | 283 | 2.5 |
| Φ282 | 20 | M20 | 334 | 2.5 |
| Φ332 | 20 | M20 | 385 | 2.5 |
| Φ378 | 24 | M24 | 435 | 3 |
| Φ428 | 24 | M24 | 487 | 3 |
| Φ530 | 24 | M24 | 589 | 3 |
